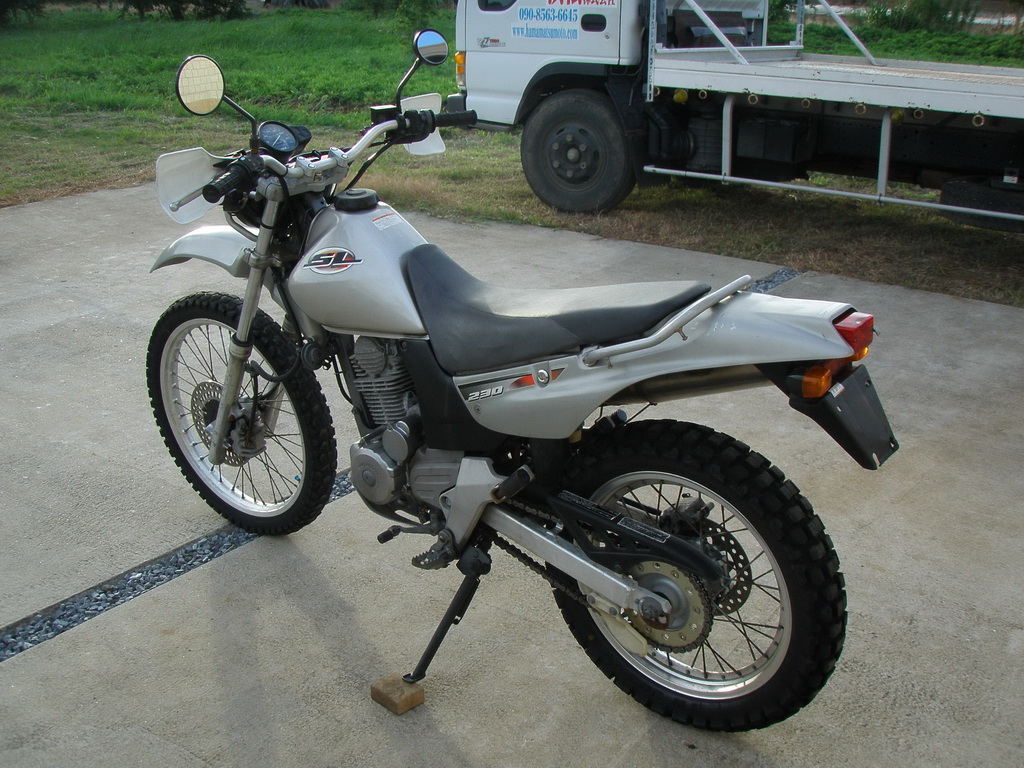

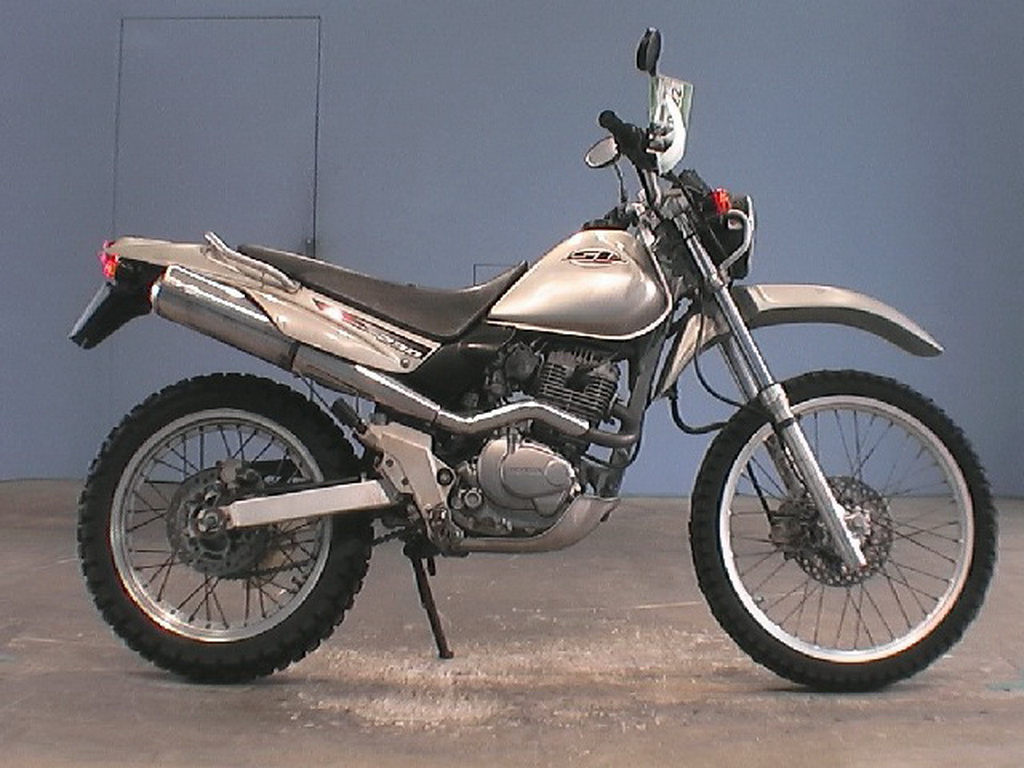

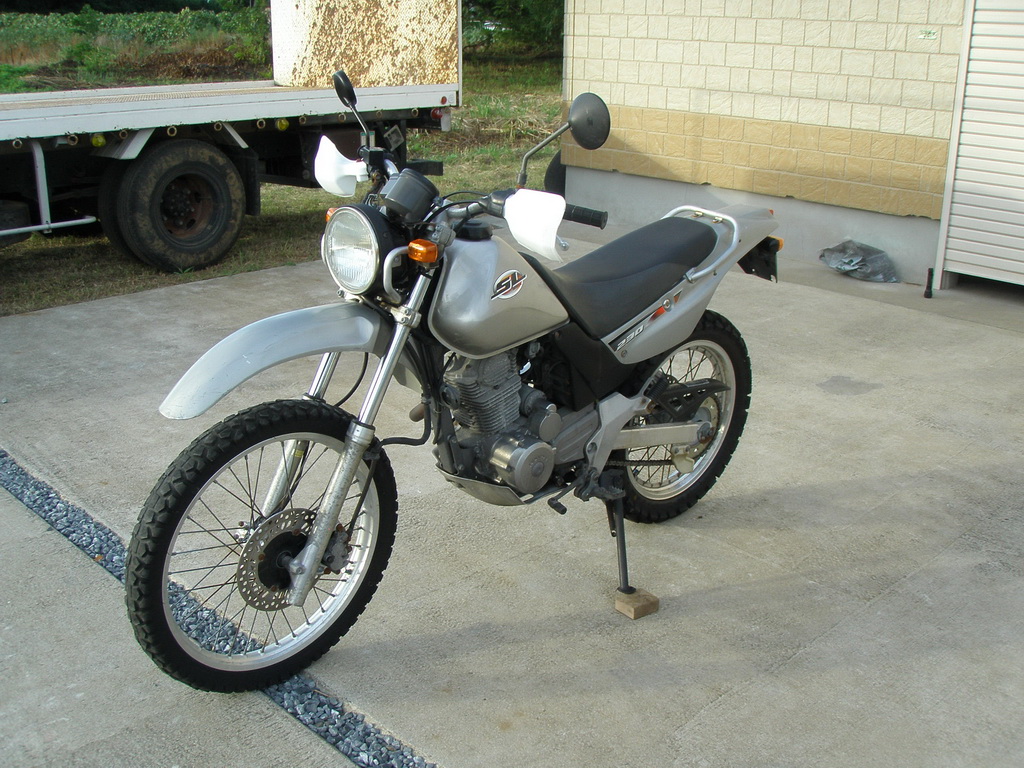

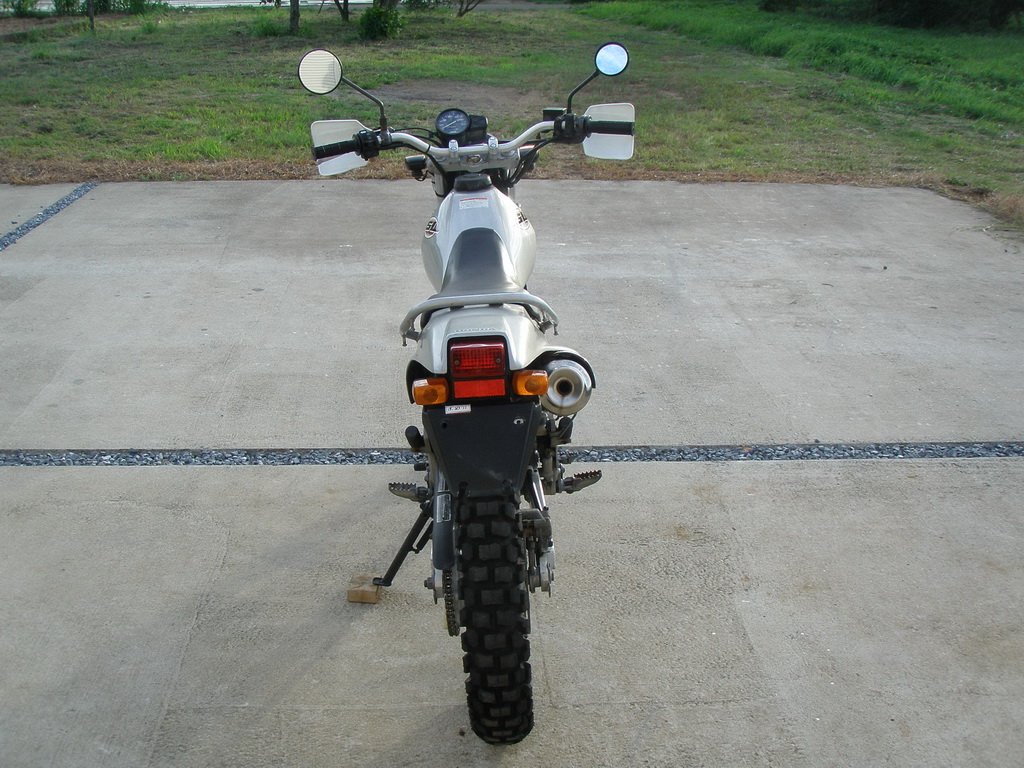

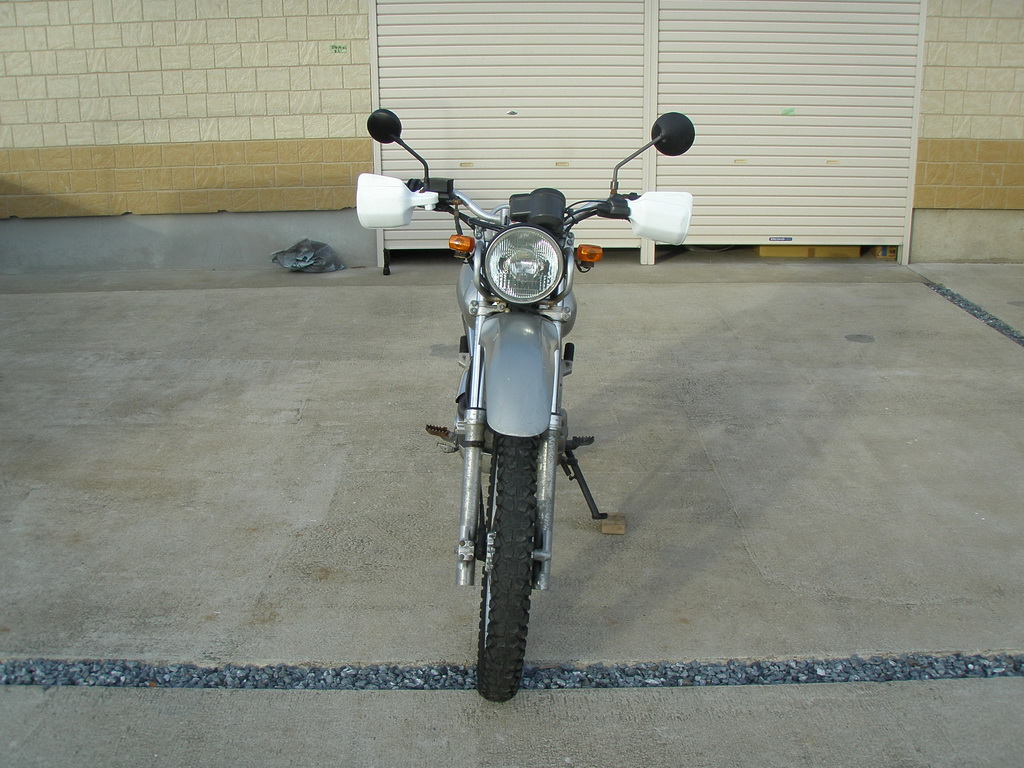

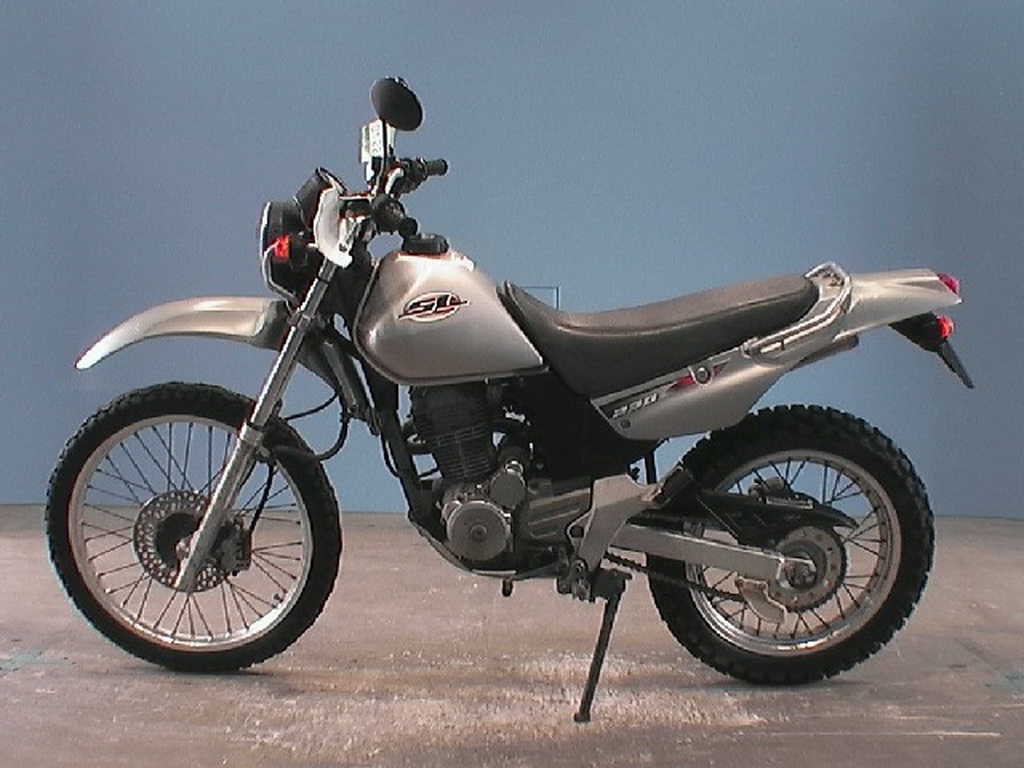

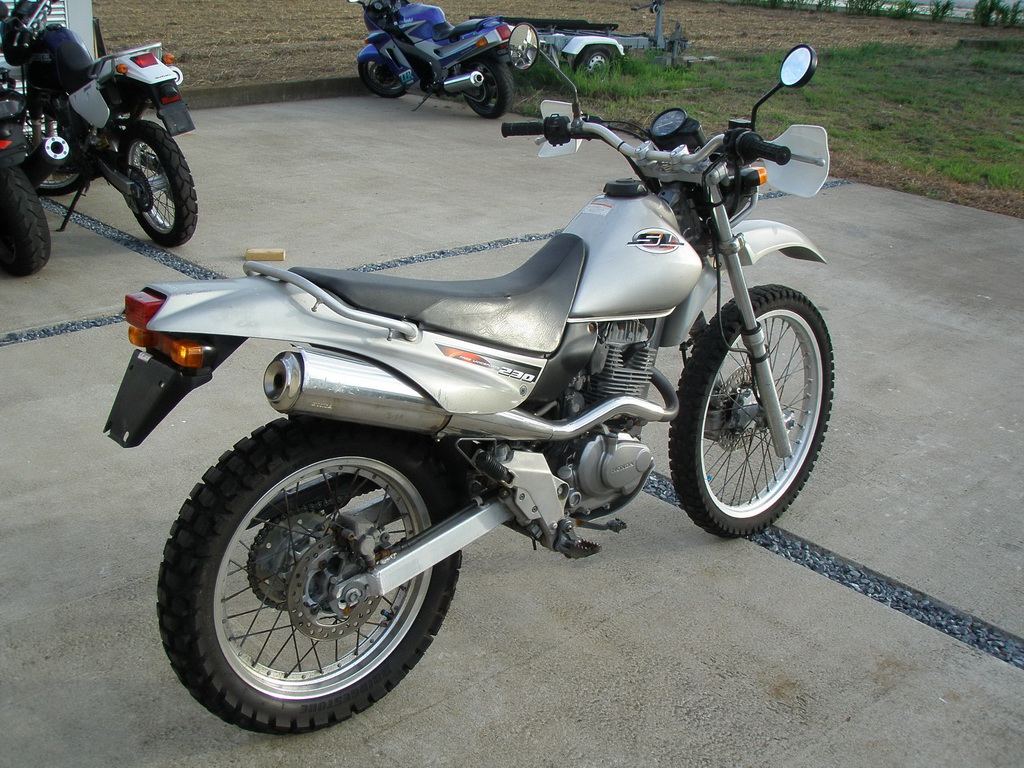

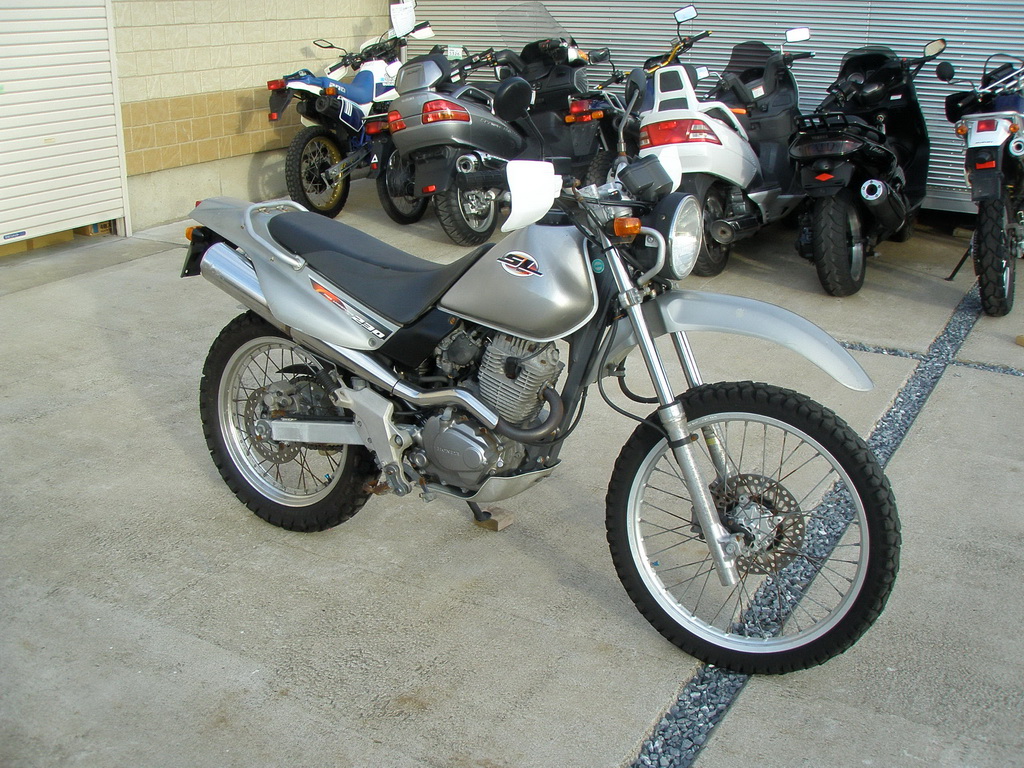

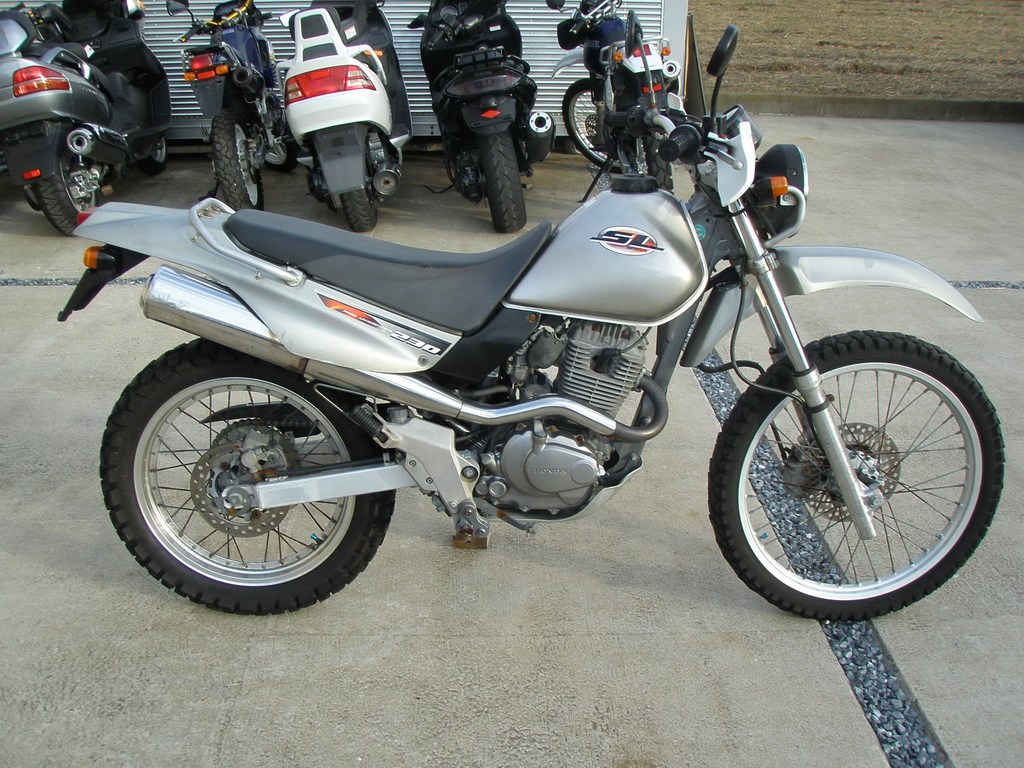

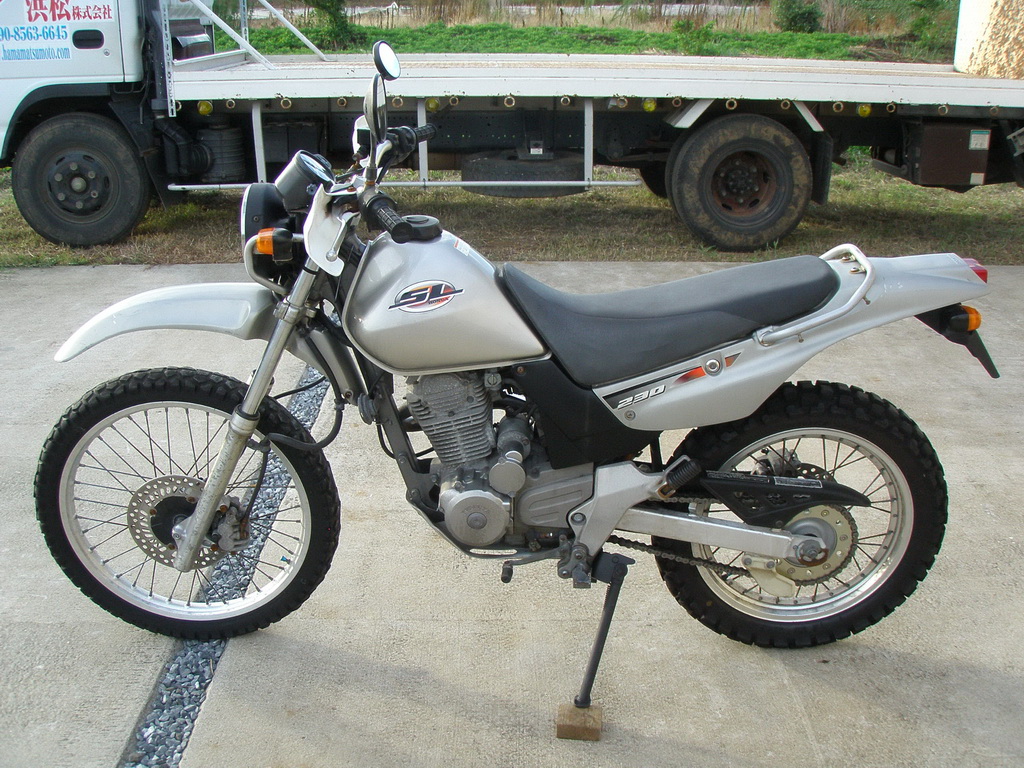

#0122 Мотоцикл Honda SL230
статус:
Модель: SL230
Год: 1997
Объем: 230 см3

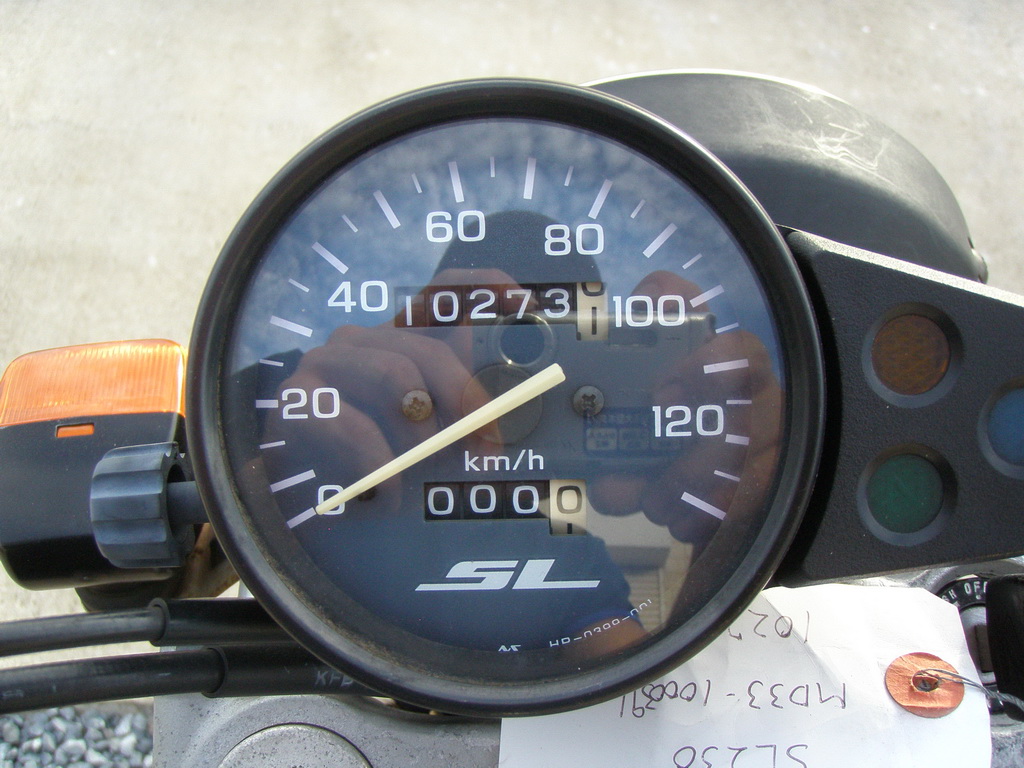

Пробег: 10273 км.
из
Дополнительная информация
Благодаря новому двигателю мотоцикл SL230 демонстрирует отличную приспособленность для езды в городских условиях, при этом обладая высокими экологическими характеристиками. Оптимизированы настройки карбюратора. Расход топлива удалось сократить да 46 км/л. Новый мотоцикл обеспечивает большую мощность на низких и средних оборотах.
Manufacturer name HONDA
Car species name SL230
Type BA-MD33
Total cubic displacement 223 cc
Dry weight 106 kg
Fixed area fuel economy 48.0 km/L (at the time of 60 km travelling)
Total length x full x total height 2055 mm x 825 mm x 1120 mm
Manufacturer desired retail price (Tokyo area) 379,000 Yen
Engine
Type Air cooled 4 cycle OHC one cylinder
Engine type MD33E
Total cubic displacement 223 cc
Compression ratio 9.0
Inside diameter (bore) 65.5 mm
Distance (stroke) 66.2 mm
Fuel supply system Carburetor
Carburetor type VE3A
Ignition system CDI type battery ignition
Lubricating system Force splash combined use system
Starting system Self system
Motor oil capacity 1.2 L
Fuel tank capacity 10 L
Efficiency
The highest output - kw (20 ps)/7500 rpm
Largest torque - N m (2.1 kg m)/6000 rpm
Full speed -
Fuel economy 48.0 km/L (at the time of 60 km travelling)
Minimum turning radius 1.9 m
Equipment
One-touch clutch lever adjustment -
One-touch brake lever adjustment -
Fuel gauge -
Twin trip meter -
Clock -
Hazard lamp -
Robbery prevention device -
Helmet receipt space -
Something related to body
Frame type Diamond
Caster 26 degrees/20 minutes
Trail 100 mm
Tire size (before) 2.75- 2145 P
Tire size (after) 120/80- 1862 P (tubeless)
Wheel travel (before) -
Wheel travel (after) -
Wheel size (before) -
Wheel size (after) -
Brake (before) Hydraulic type disk
Brake (after) Hydraulic type disk
Suspension system (before) Telescopic system
Suspension system (after) Swing arm system (professional link)
Steering wheel angle (the right) -
Steering wheel angle (the left) -
Transmission
Clutch type Wet multiple plate coil springs
Transmission type Regular gearing type 6 step return
Change gear ratio 1st gear 3.083
2nd gear 2.062
3rd gear 1.450
4th gear 1.130
5 speeds 0.960
6 speeds 0.814
Primary reduction gear ratio 3.090
Secondary reduction gear ratio 3.000
Variable speed car change gear ratio -
