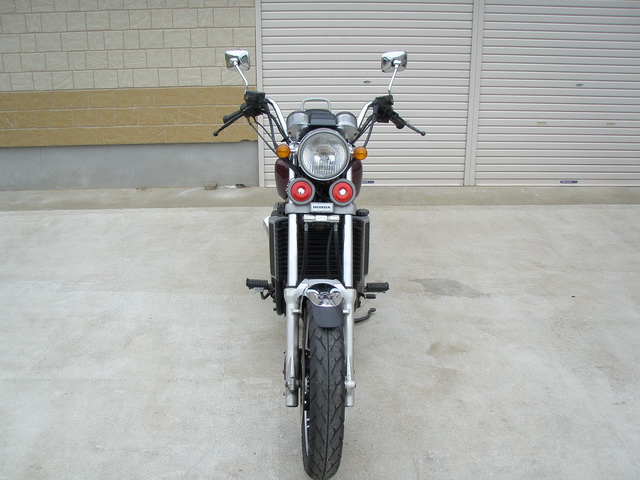

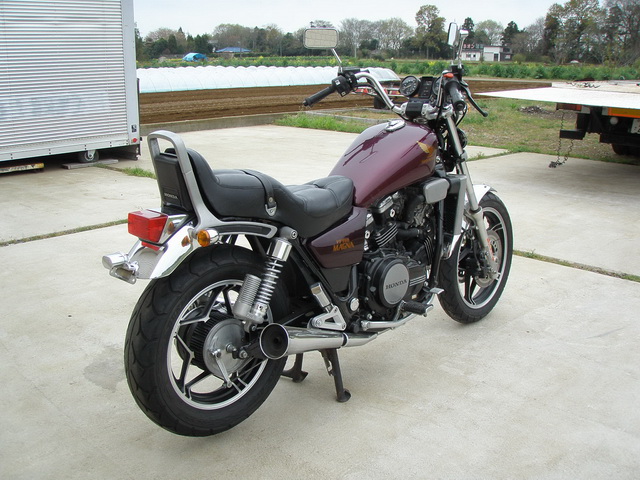

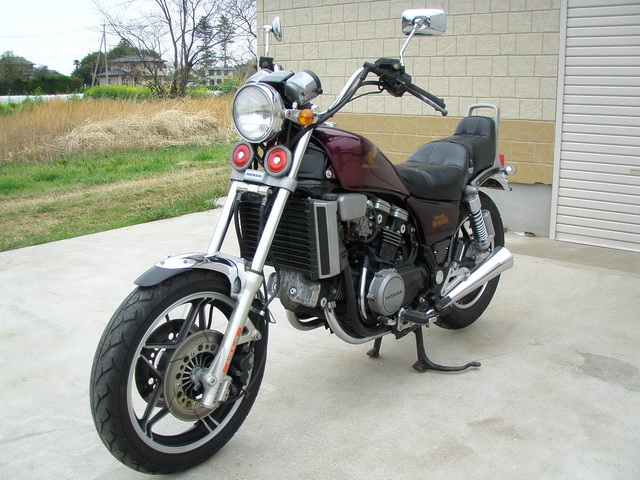

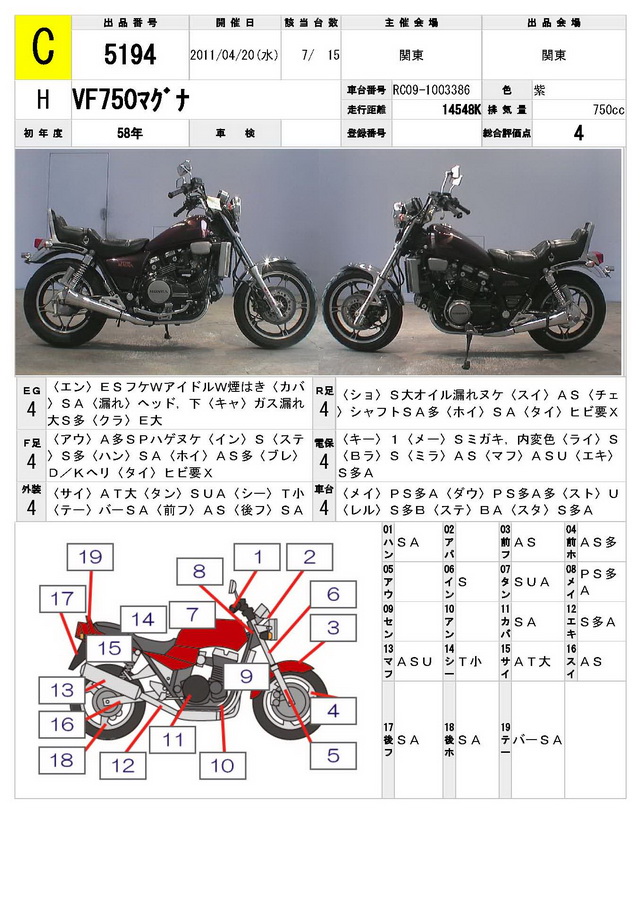

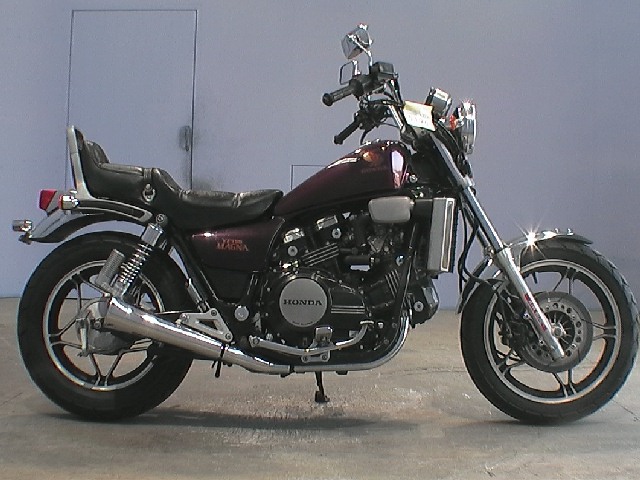

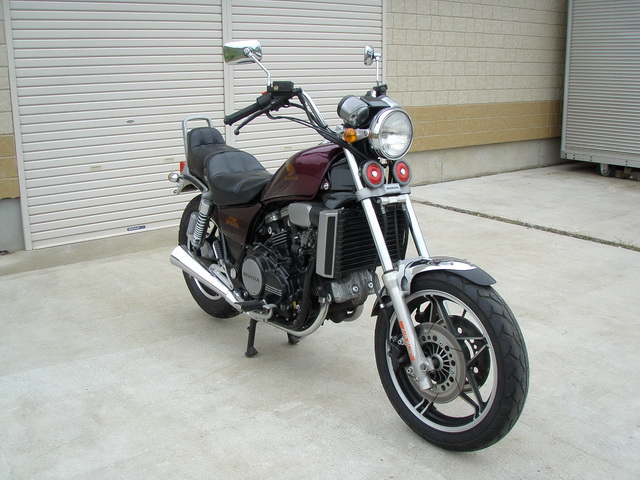

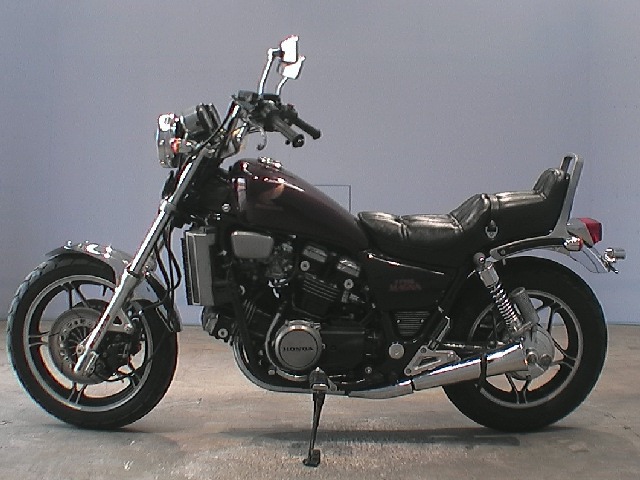

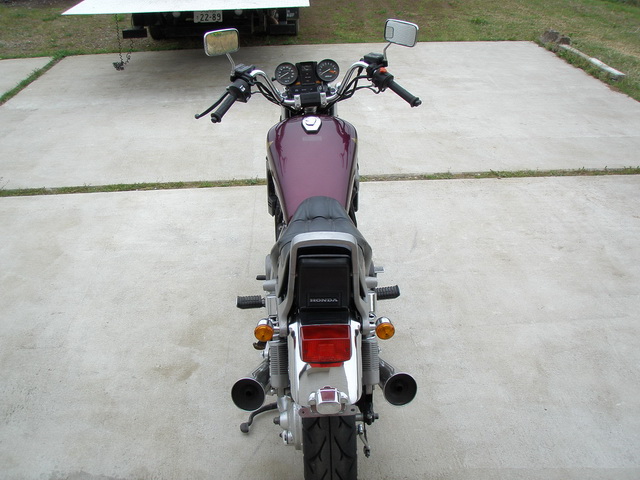

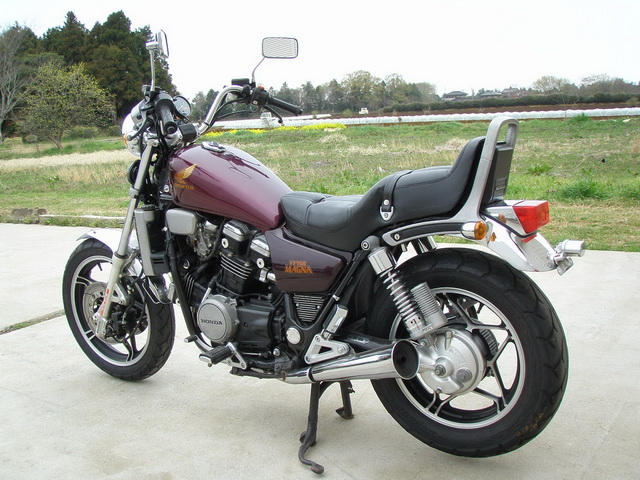

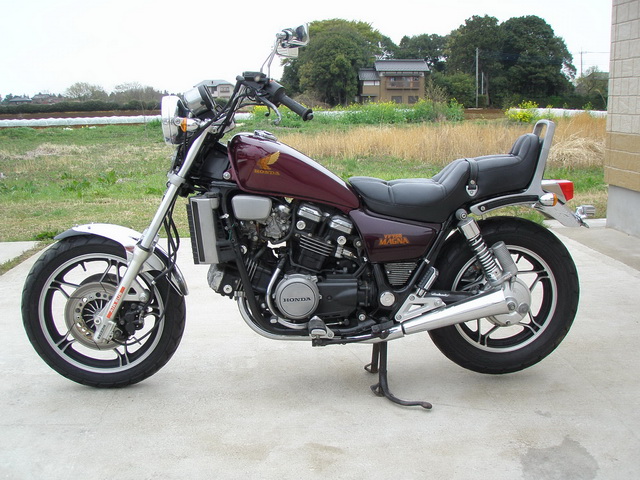

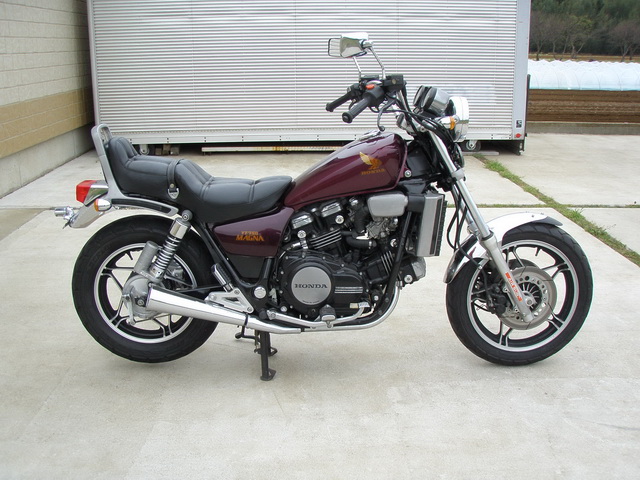

#5194 Мотоцикл Honda VF750 Magna
статус:
Модель: VF750 Magna
Год: 1982
Объем: 750 см3

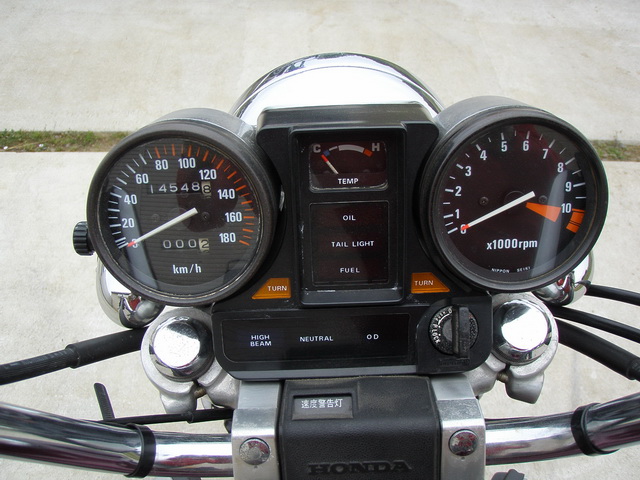

Пробег: 14548 км.
из
Дополнительная информация
VF750 Magna является прародителем занаменитой модели Honda V45 Magna...
Manufacturer name HONDA
Car species name V45 Magna
Type RC28
Total cubic displacement 748 cc
Dry weight 226 kg
Fixed area fuel economy 23.5 km/L (at the time of 60 km travelling)
Total length x full x total height 2385 mm x 810 mm x 1155 mm
Manufacturer desired retail price (Tokyo area) 650,000 Yen

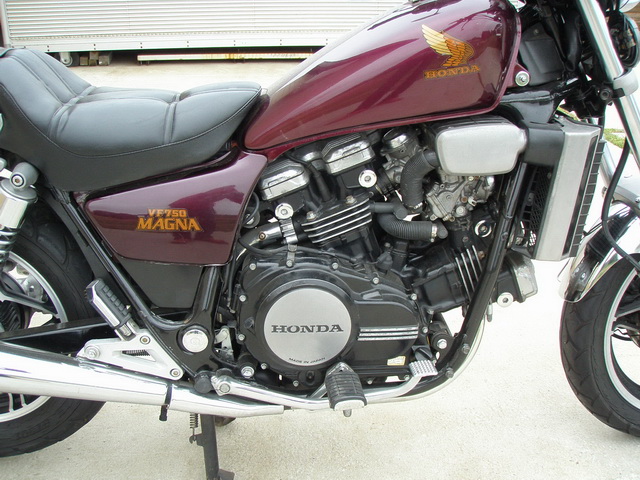

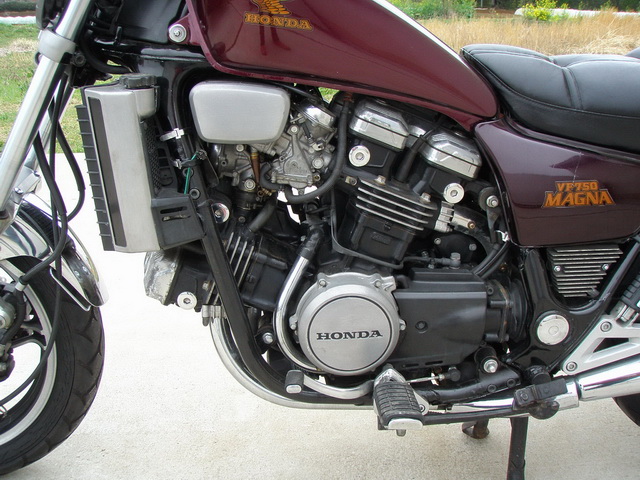

Engine
Type Water cooling 4 cycle OHC3 valve V type 4 cylinder
Engine type RC07E
Total cubic displacement 748 cc
Compression ratio 10.8
Inside diameter (bore) 70.0 mm
Distance (stroke) 48.6 mm
Fuel supply system Carburetor
Carburetor type VP32
Ignition system Full transistor type battery ignition
Lubricating system Force splash combined use system
Starting system Self system
Motor oil capacity 3.8 L

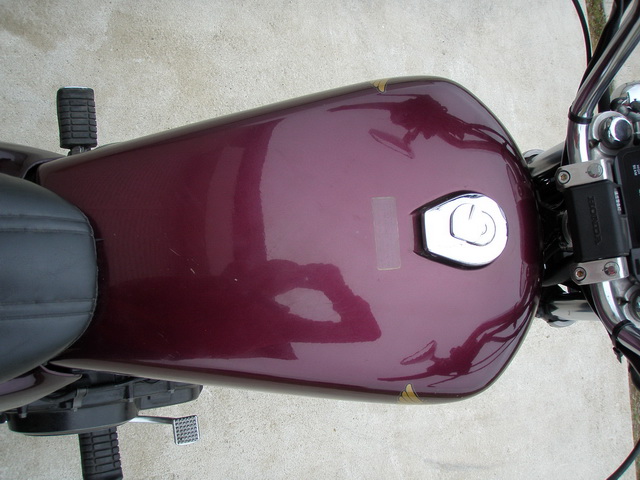

Fuel tank capacity 13 L
Efficiency
The highest output - 58.9 kw (79 ps)/9500 rpm
Largest torque - 66N m (6.6 kg m)/7000 rpm
Full speed - 180 k/h
Fuel economy 23.5 km/L (at the time of 60 km travelling)
Minimum turning radius 3.3 m

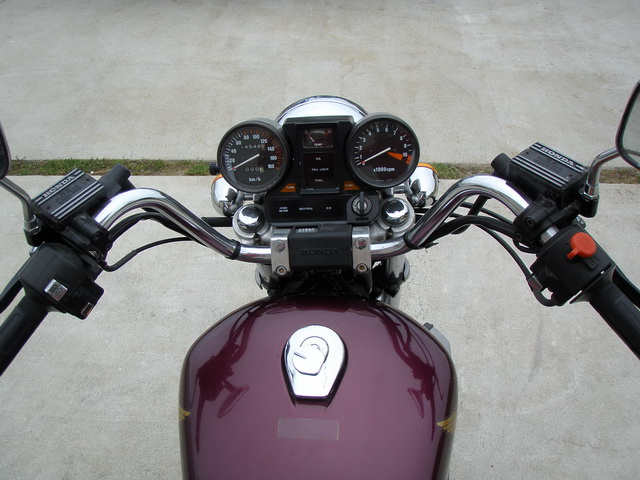

Equipment
One-touch clutch lever adjustment -
One-touch brake lever adjustment -
Fuel gauge -
Twin trip meter -
Clock -
Hazard lamp -
Robbery prevention device -
Helmet receipt space -
Something related to body
Frame type Double cradle
Caster 32 degrees/00 minutes
Trail 137 mm
Tire size (before) 100/90- R19 (61 V )
Tire size (after) 150/80-R15 (M/C 70V )
Wheel travel (before) -
Wheel travel (after) -
Wheel size (before) -
Wheel size (after) -

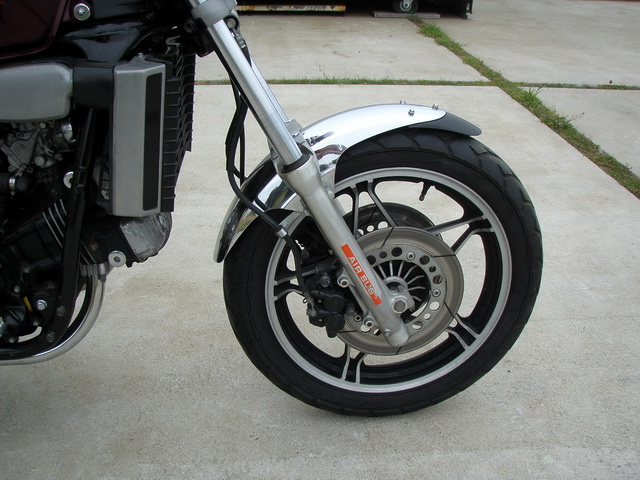

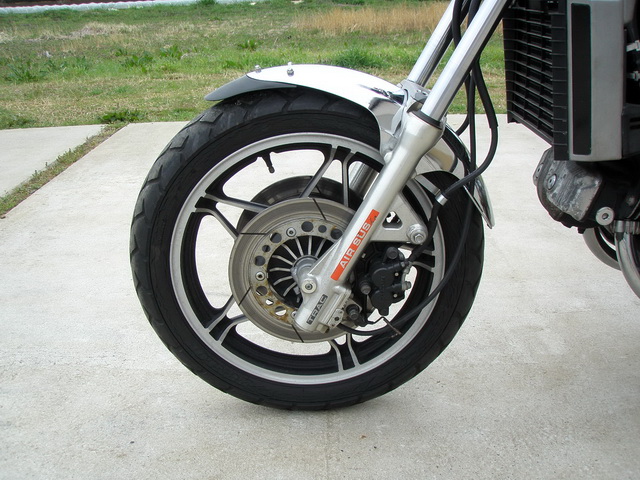

Brake (before) Hydraulic type disk

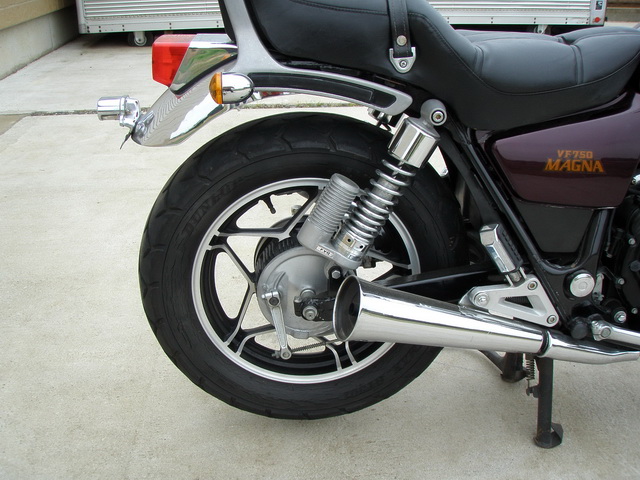

Brake (after) Mechanical cable type leading trailing
Suspension system (before) Telescopic system

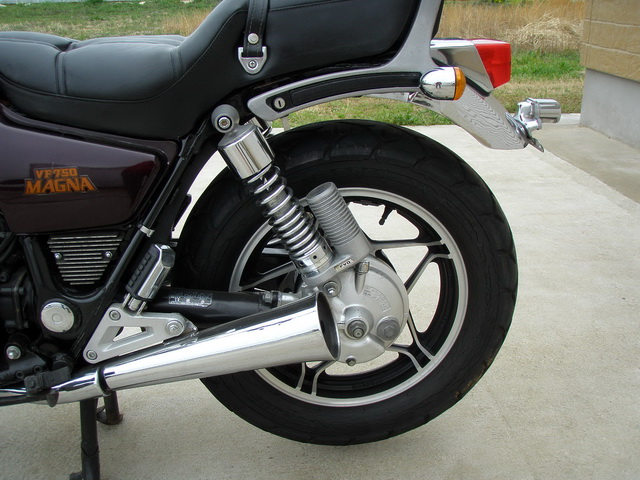

Suspension system (after) Swing arm system
Steering wheel angle (the right) -
Steering wheel angle (the left) -
Transmission
Clutch type Wet multiple plate coil springs
Transmission type Regular gearing type 5 step return
Change gear ratio 1st gear 2.846
2nd gear 1.882
3rd gear 1.450
4th gear 1.227
5 speeds 1.035
Primary reduction gear ratio 1.939
Secondary reduction gear ratio 2.437
Variable speed car change gear ratio -
