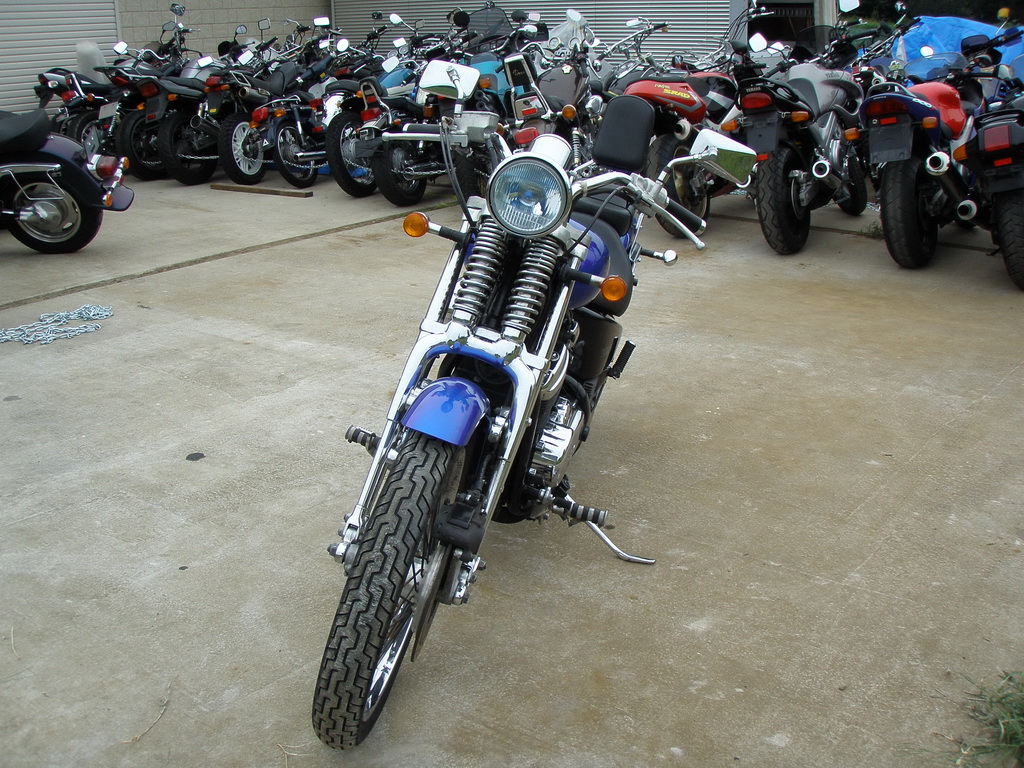

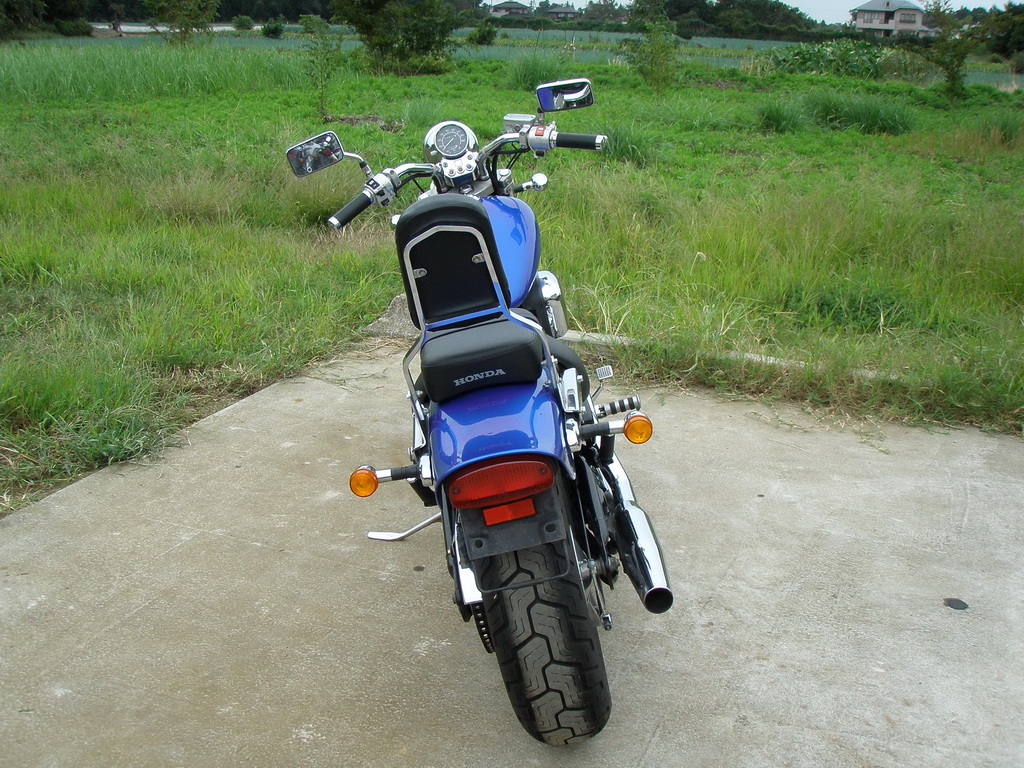

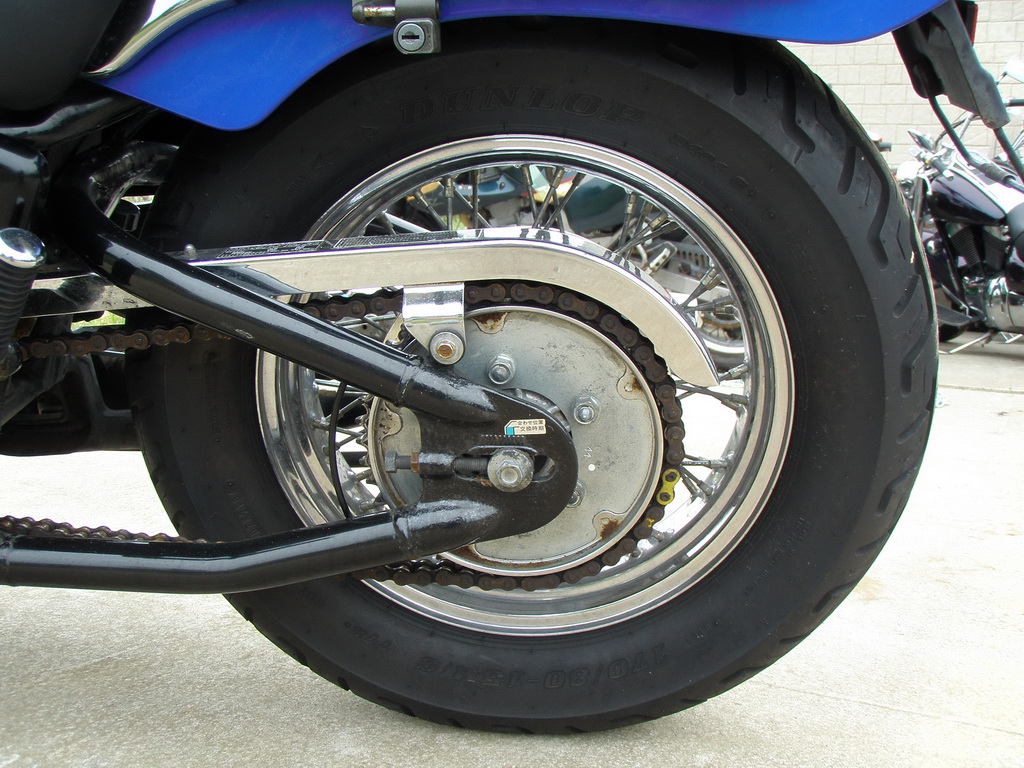

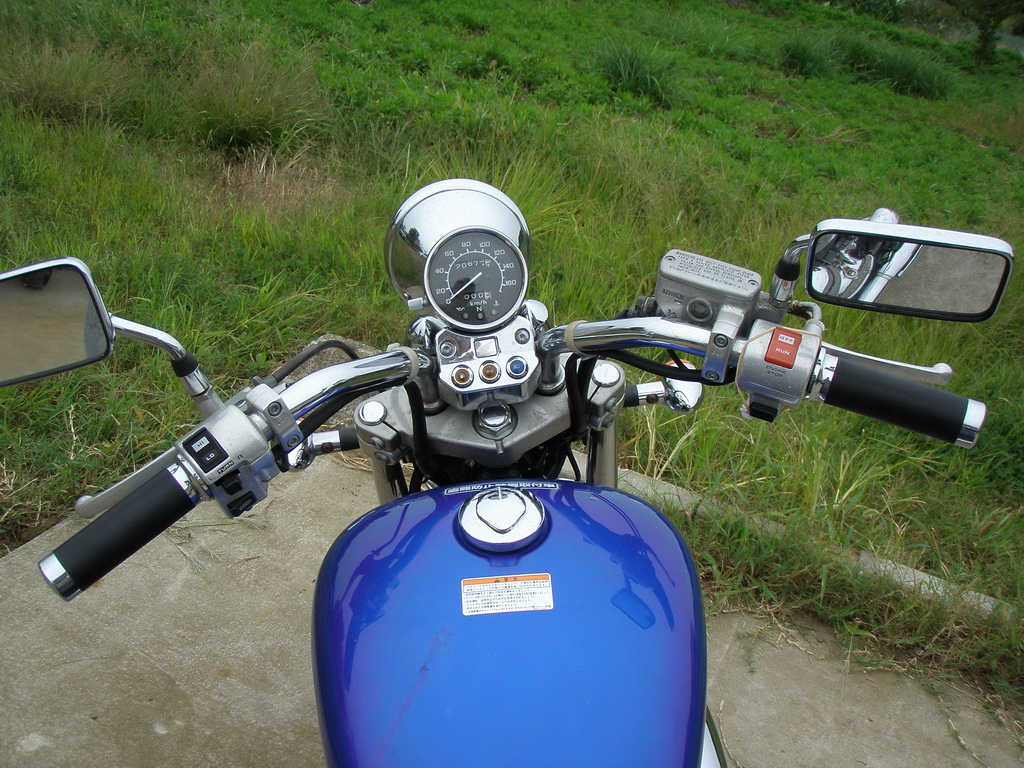

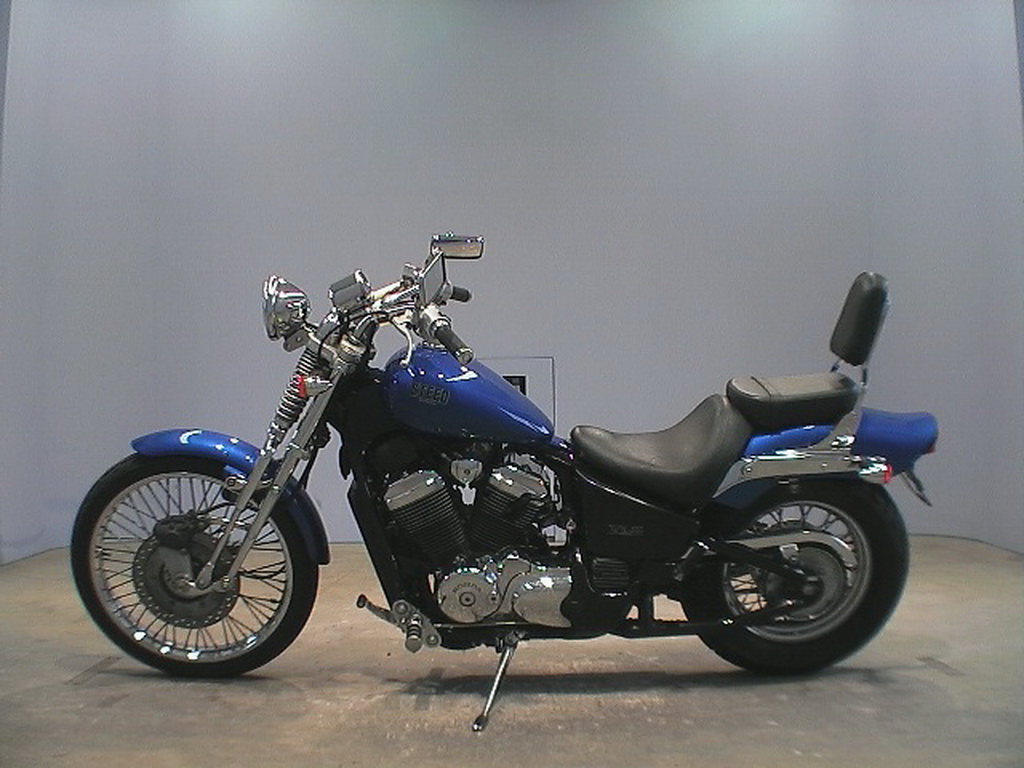

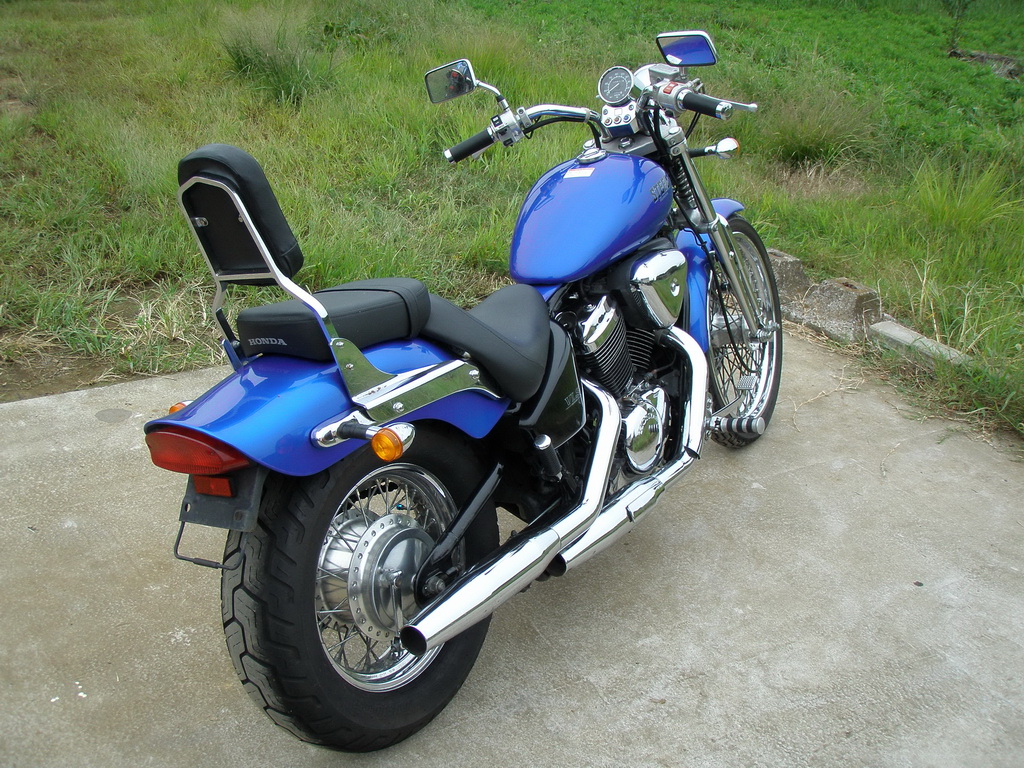

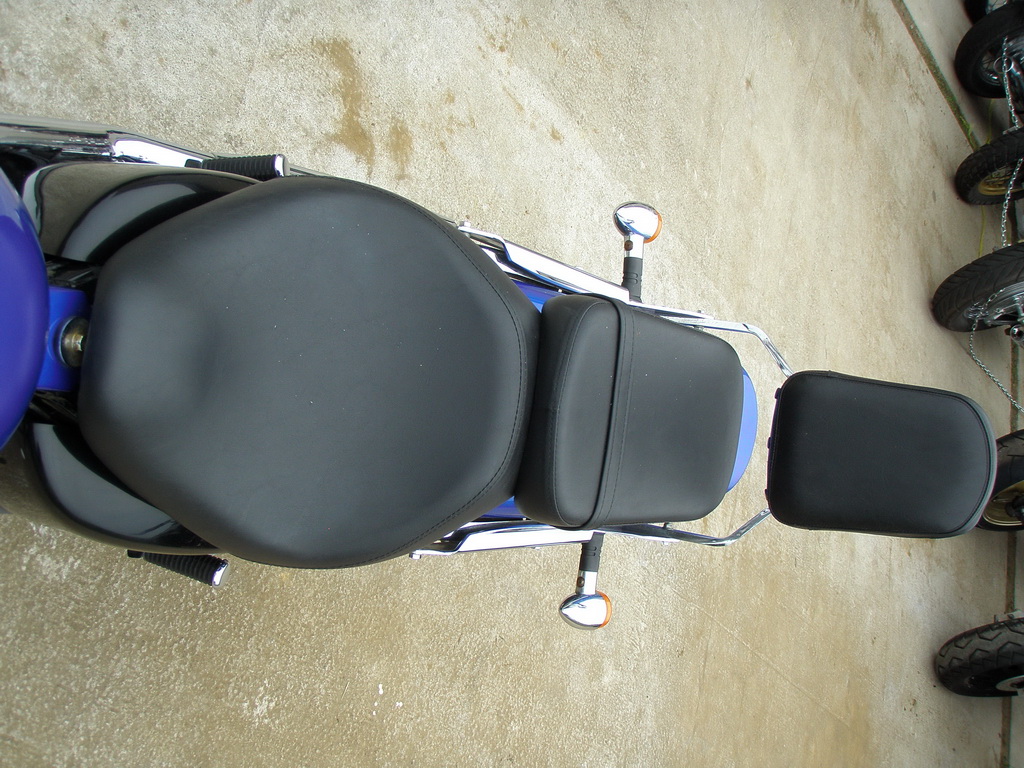

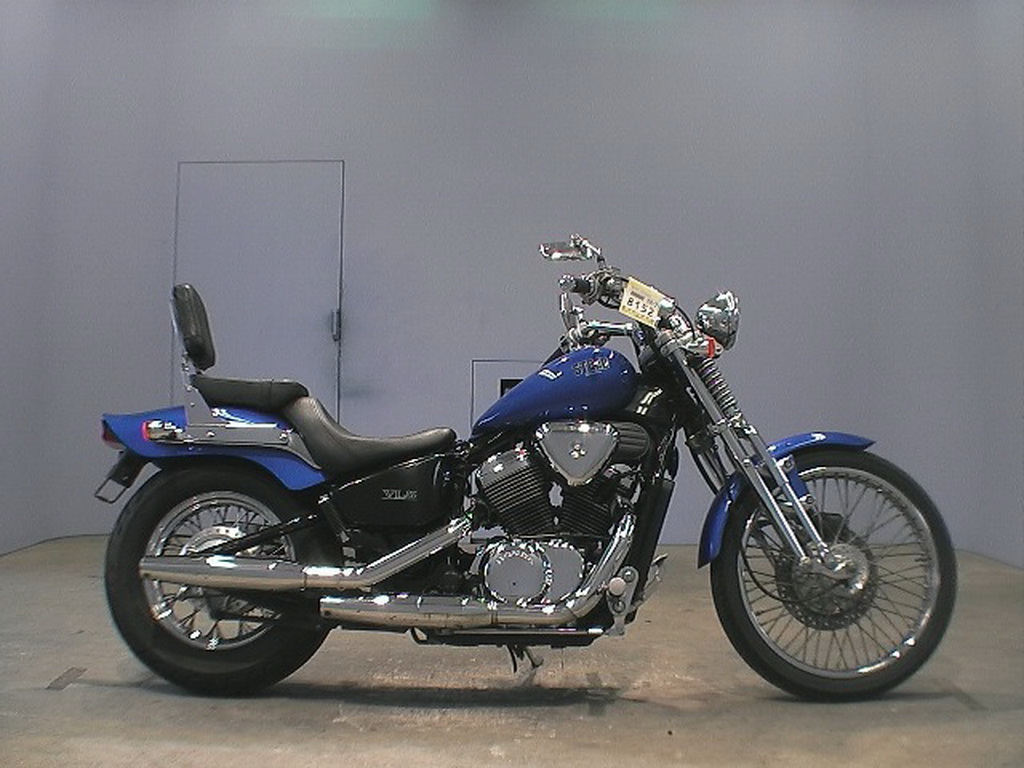

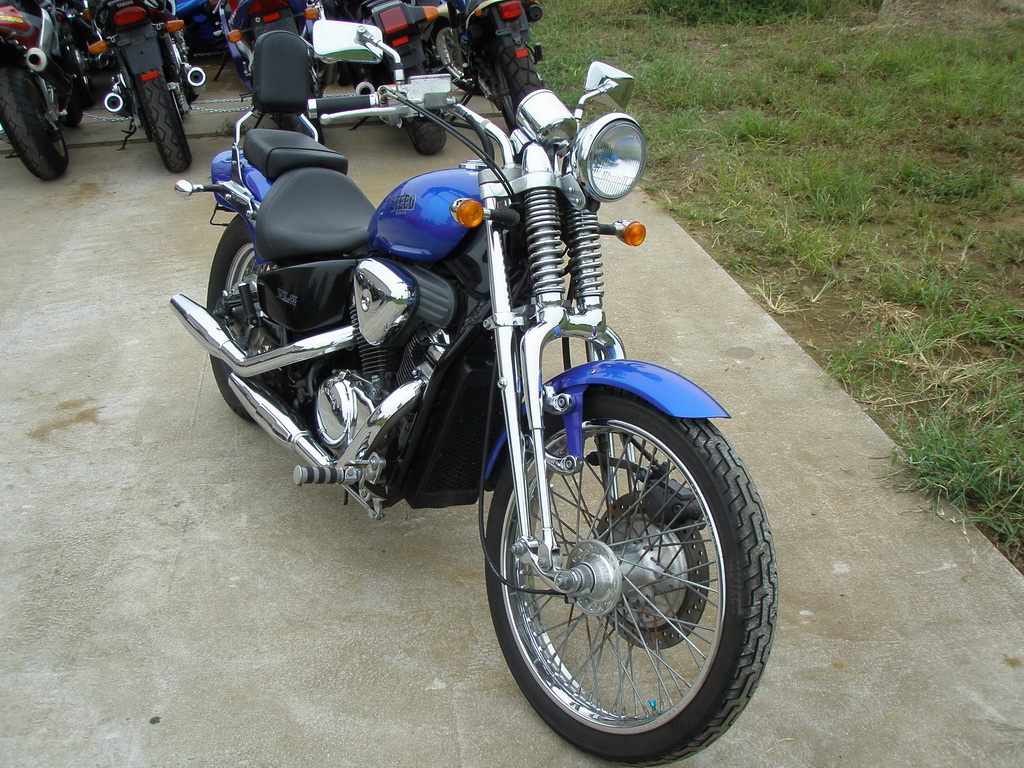

#8152 Мотоцикл Honda Steed400 VLS
статус:
Модель: Steed400 VLS
Год: 1998
Объем: 400 см3

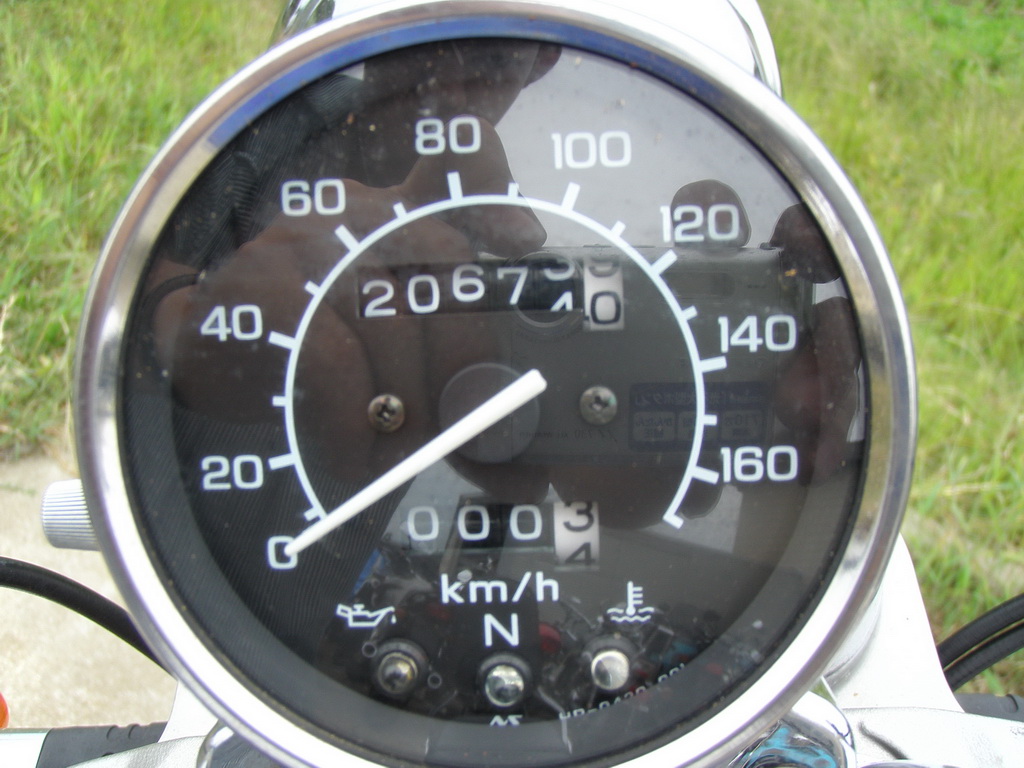

Пробег: 20673 км.
из
Дополнительная информация

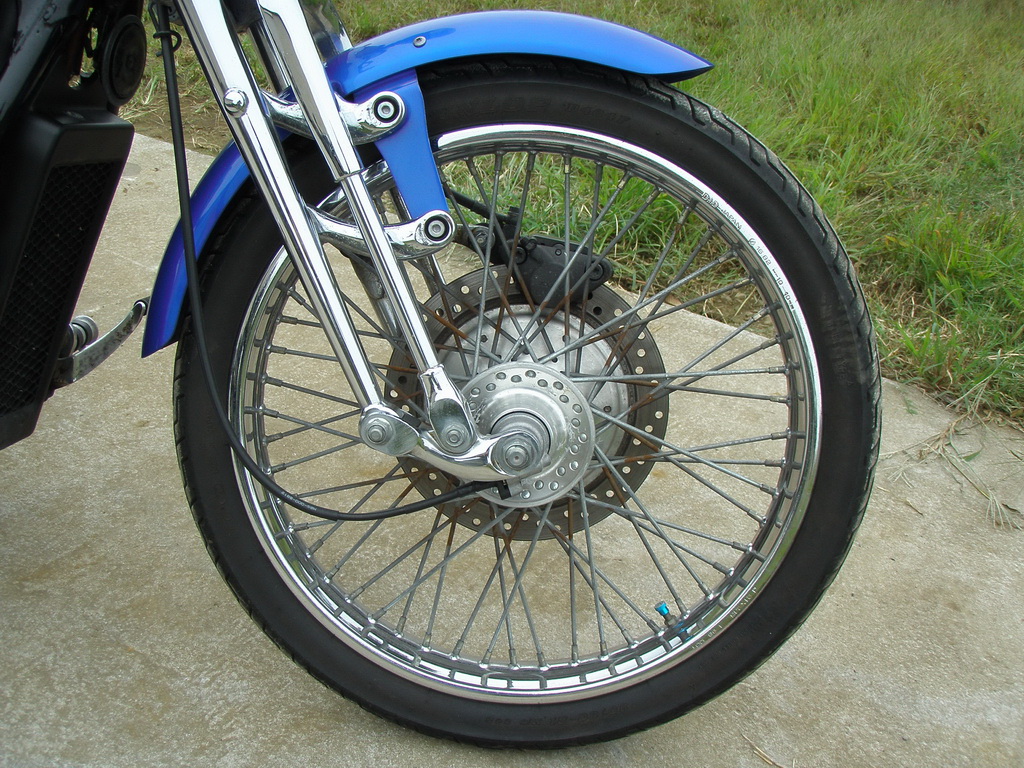

От других модификаций Steed VLS отличается короткорычажной вилкой, характерной для некоторых моделей Harley Davidson. Обеспечен оригинальный внешний вид, мгновенно добавивший модели популярности. Диаметр переднего колеса у VLS увеличен с 19 до 21 дюйма, высота по седлу уменьшена до 650 мм...
Manufacturer name HONDA
Car species name STEED 400 VLS
Type NC37
Total cubic displacement 398 cc
Dry weight 211 kg
Fixed area fuel economy 37.2 km/L (at the time of 60 km travelling)
Total length x full x total height 2335 mm x 765 mm x 1115 mm
Manufacturer desired retail price (Tokyo area) 649,000 Yen

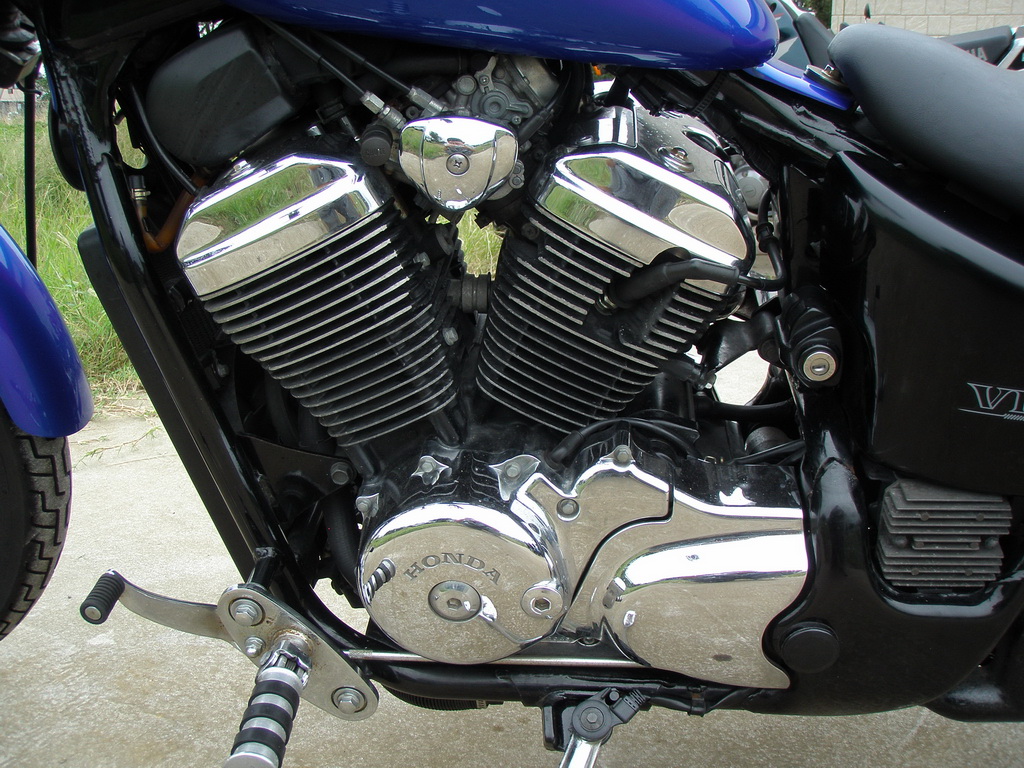

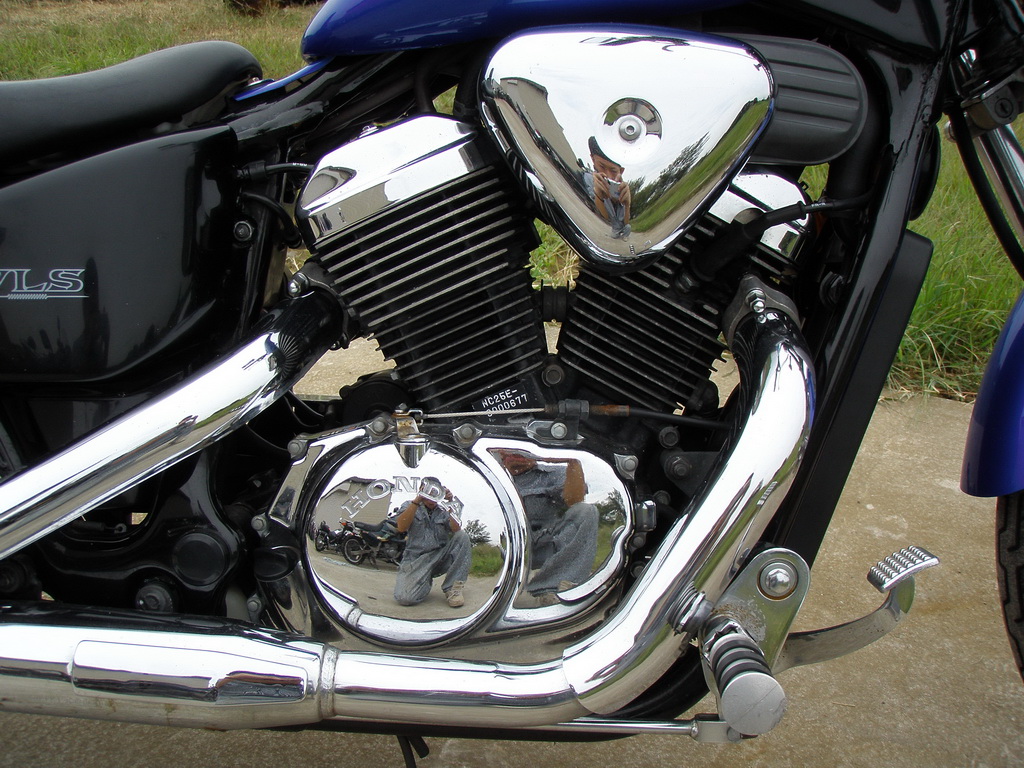

Engine
Type Water cooling 4 cycle OHC3 valve V type 2 cylinder
Engine type NC25E
Total cubic displacement 398 cc
Compression ratio 9.8
Inside diameter (bore) 64.0 mm
Distance (stroke) 62.0 mm
Fuel supply system Carburetor
Carburetor type VDD0
Ignition system Full transistor type battery ignition
Lubricating system Force splash combined use system
Starting system Self system
Motor oil capacity 2.8 L
Fuel tank capacity 9.7 L
Efficiency
The highest output - kw (31 ps)/7500 rpm
Largest torque - N m (3.4 kg m)/5500 rpm
Full speed -
Fuel economy 37.2 km/L (at the time of 60 km travelling)
Minimum turning radius 3.3 m
Equipment
One-touch clutch lever adjustment -
One-touch brake lever adjustment -
Fuel gauge -
Twin trip meter -
Clock -
Hazard lamp -
Robbery prevention device -
Helmet receipt space -
Something related to body
Frame type Double cradle
Caster 35 degrees/00 minutes
Trail 136 mm
Tire size (before) 90/90- 2154 S
Tire size (after) 170/80-15M/C 77S
Wheel travel (before) -
Wheel travel (after) -
Wheel size (before) -
Wheel size (after) -

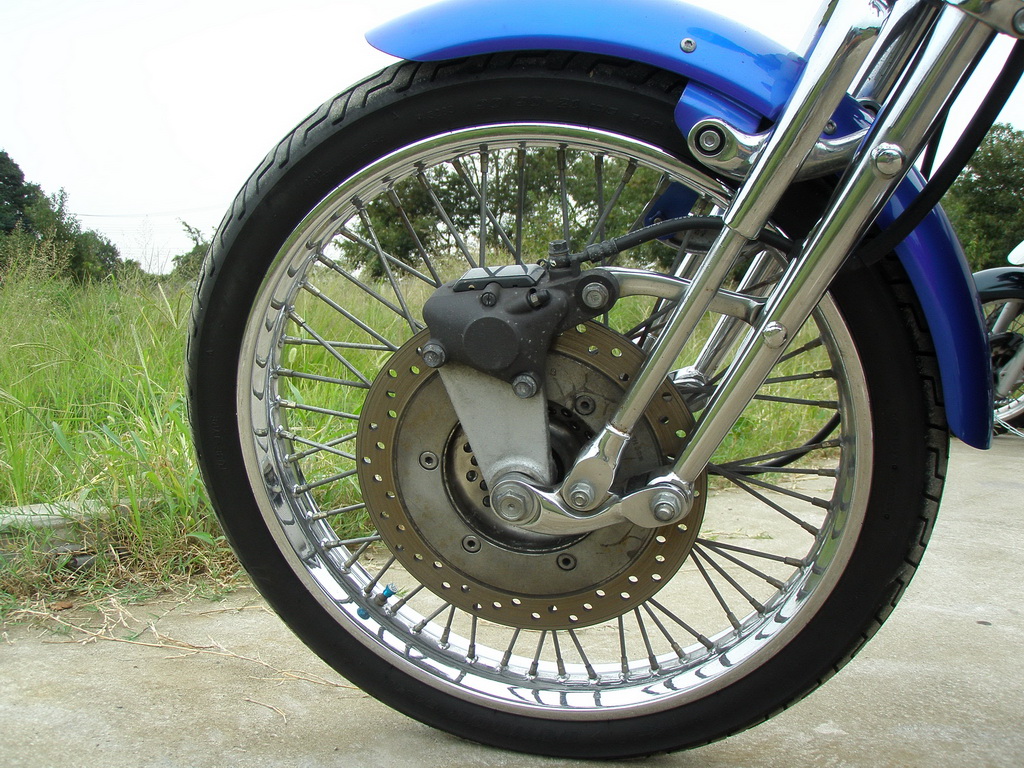

Brake (before) Hydraulic type disk
Brake (after) Mechanical cable type leading trailing
Suspension system (before) Bottom link system
Suspension system (after) Swing arm system
Steering wheel angle (the right) -
Steering wheel angle (the left) -
Transmission
Clutch type Wet multiple plate coil springs
Transmission type Regular gearing type 5 step return
Change gear ratio 1st gear 3.166
2nd gear 2.000
3rd gear 1.500
4th gear 1.173
5 speeds 1.041
Primary reduction gear ratio 2.058
Secondary reduction gear ratio 2.750
Variable speed car change gear ratio -
